Transformer Marshalling Kiosk Terminal Schedule for African EPC Projects: I/O Ownership, Cable Segregation and FAT
For an African EPC project, a transformer can arrive with every major accessory installed and still fail the first integrated control test. The usual cause is not the main winding or tank. It is an incomplete transformer marshalling kiosk terminal schedule: alarm contacts are duplicated, trip circuits have no clear owner, cable screens are bonded inconsistently, or terminal numbers do not match the protection drawings. Zisheng Electric therefore treats the marshalling kiosk as a controlled interface between transformer accessories, the protection panel, SCADA and the site auxiliary supply.
This guide is written for EPC contractors, industrial owners, utilities and distributors purchasing oil-immersed transformers or packaged substations. It explains how to freeze the signal list, assign boundaries, segregate circuits and build factory and site acceptance around evidence. The method is intentionally project-specific. Control voltage, relay philosophy, cable practice and environmental conditions must come from the approved project documents rather than a generic vendor template.
Why the Transformer Marshalling Kiosk Terminal Schedule Matters
The marshalling kiosk collects field wiring from temperature indicators, gas and pressure devices, oil-level contacts, cooler controls, tap-changer equipment, heaters and other accessories. It then presents those circuits to the EPC team through numbered terminals. That sounds straightforward until several companies share the design. The transformer supplier may provide contacts, the protection-panel vendor may define inputs, the SCADA contractor may allocate points, and the EPC contractor may supply the interconnecting cables. A missing boundary can remain invisible until commissioning.
The schedule matters because a signal name alone is not enough. “High temperature” must identify the originating device, contact state, alarm or trip function, control voltage, terminal numbers, destination, cable core, test method and fail-safe behavior. “Fan supply” must identify who provides the source, breaker, local-auto logic, feedback and loss-of-supply alarm. If the purchase order asks only for “complete marshalling kiosk,” bidders can price materially different scopes while appearing compliant.
The problem becomes more acute at remote industrial sites. Long replacement lead times, limited commissioning windows and multiple subcontractors make undocumented field changes expensive. A controlled terminal schedule converts the kiosk from a collection of terminals into a verifiable package that can be inspected, tested and maintained.
Freeze the I/O Philosophy Before Final Drawings
Start from functions, not terminal numbers
Begin with the owner’s protection and control philosophy. List which transformer conditions produce local indication, remote alarm, trip, lockout, cooler start, tap-changer blocking or maintenance notification. Then identify the device that initiates each function. Only after the functional list is approved should the supplier assign terminals and cable cores.
This sequence prevents a common error: the general arrangement and accessory order are frozen before the protection engineer confirms the required contacts. A winding temperature indicator may be ordered with one alarm and one trip contact while the I/O list expects separate fan-start, alarm and trip stages. Correcting that gap after manufacture may require replacing the device rather than adding a terminal.
Define every electrical state
For each binary contact, state the normal condition with the transformer healthy, energized or de-energized as applicable. Clarify whether the circuit is normally open or normally closed, whether loss of auxiliary power must create an alarm, and whether the remote system supervises the wiring. For analogue signals, identify the measured quantity, range, output type, power source, isolation and destination. For communication signals, identify the protocol, physical medium, data ownership and fallback hardwired points.
Do not mix “available contact” with “implemented site function.” A device can have spare contacts that are not wired to the terminal block. Conversely, the SCADA list can include a point that no accessory provides. The approved signal matrix must reconcile both sides before drawings are issued for manufacture.
Transformer Marshalling Kiosk Terminal Schedule Decision Table
| Interface item | Required project input | Supplier evidence | Risk if unresolved |
|---|---|---|---|
| Accessory contacts | Alarm, trip, cooling and blocking philosophy | Device data, contact ratings and point-to-point wiring | Missing function or wrong operating sequence |
| Auxiliary supply | AC/DC voltage, source, earthing and availability | Load schedule, protective devices and schematic | Heaters, motors or relays unavailable when required |
| Terminal numbering | Project tagging and drawing convention | Terminal plan, ferrule list and cross-reference | Commissioning errors and slow fault tracing |
| Cable segregation | Power, trip, CT, analogue and communication classes | Internal layout, duct allocation and gland plan | Interference, unsafe isolation or induced voltage |
| Contact duty | Destination burden and switching method | Contact rating or interposing-relay selection | Contact damage or unreliable operation |
| Spare capacity | Owner expansion policy | Spare terminals, ducts and gland entries | Uncontrolled drilling and overcrowding during expansion |
| Environmental protection | Ambient, humidity, dust, corrosion and storage period | Enclosure, seals, heater control and materials | Condensation, corrosion or terminal deterioration |
| FAT and SAT | Witness scope and acceptance forms | Continuity, functional, insulation and sequence records | Defects discovered only during energization |
Use this table during bid evaluation. “By others” is not automatically a deviation, but the adjacent package and responsible party must be named. The objective is to remove unowned gaps, not to force every control component into the transformer supplier’s scope.
Allocate Supply and Design Boundaries
Create a responsibility matrix covering design, supply, installation, termination, testing and documentation. Typical line items include field devices, local gauges, terminal blocks, interposing relays, miniature circuit breakers, cooler contactors, anti-condensation heaters, thermostat or humidistat, kiosk lighting, sockets, cable glands, gland plates, internal wiring, external multicore cables, fibre converters and SCADA configuration.
The transformer supplier normally controls accessory selection and internal wiring. The EPC contractor usually controls external cables and site terminations. However, “normally” is not a contract boundary. State the allocation in the purchase specification and repeat it on the wiring diagram. If the protection-panel vendor supplies interposing relays, define whether they are in the remote panel or transformer kiosk and who proves their coil and contact duties.
Coordination should also cover the transformer protection coordination study. A trip contact that operates correctly in the kiosk can still fail the system requirement if it is routed to the wrong breaker, omitted from lockout logic or assigned an incompatible DC supply.
Control Voltage and Contact Duty Need Engineering Review
Record every auxiliary voltage and its permissible variation according to the project specification. Separate sources may serve trip circuits, alarm circuits, cooler motors, heaters and service outlets. The kiosk schematic must show source boundaries, isolation and protection. If temporary construction power is needed for heaters before energization, identify the connection and owner in the storage plan.
A dry contact is not automatically suitable for every destination. Confirm the voltage, current, inductive burden and switching frequency. Where the accessory contact cannot reliably switch the required circuit, use a correctly selected interposing relay or other approved interface. The relay must not hide the original device state, and its failure behavior should match the owner’s philosophy.
Cooling circuits deserve particular care. Fan and pump motors may use an AC supply while control and alarm circuits use DC. Local-manual, local-auto and remote commands must not create conflicting paths. Feedback should distinguish a command from proven operation. Review the broader transformer auxiliary power supply design when the site has generator transfer, weak station service or extended outages.
Segregate Power, Trip, Measurement and Communication Circuits
The EPC cable philosophy should classify circuits and specify physical separation, shielding and earthing practices. Motor and heater feeders can create electrical noise and fault energy that should not share uncontrolled routes with low-level analogue or communication wiring. Trip circuits need clear isolation and identification. Current-transformer circuits require dedicated shorting and test provisions where the protection design calls for them.
Segregation is not achieved by different wire colors alone. Review terminal-block groups, wiring ducts, gland-plate areas and cable approach directions. Maintain the required separation through the full route, including the transition from field device to kiosk and from kiosk to trench. If conductors cross, define the arrangement on the drawing rather than relying on an installer’s judgment in a crowded enclosure.
Shield bonding must follow the project EMC and earthing philosophy. The terminal schedule should indicate where each screen is terminated or parked. Do not create multiple uncontrolled screen-earth paths merely because spare earth terminals are available. Communication cables need their own connector, bend-radius, surge-protection and grounding requirements where applicable.
Design the Terminal Plan for Installation and Maintenance
Terminal numbers should follow a stable convention and remain consistent across the schematic, connection diagram, terminal plan, cable schedule and SCADA list. Every wire needs a durable ferrule at both ends. Cross-references should lead a technician from the device contact through the kiosk terminal to the remote destination without interpretation.
Leave usable working space around terminal blocks. Space on a drawing can disappear after cable glands, large multicore cables, duct covers and door-mounted devices are installed. Show the cable-entry direction and gland plate with the actual cable schedule. State conductor sizes, numbers of cores, shield or armour arrangement and spare entries. Unused entries should be closed using the approved enclosure method, not improvised after delivery.
Spare terminals are useful only when they are accessible, numbered and shown on the final drawing. Provide spare duct and gland capacity according to the owner’s expansion policy. A future cable should not require drilling above energized terminals or removing the heater. The same interface principles discussed in the terminal-box condensation-control guide apply to final gland sealing and enclosure integrity.
Adapt the Kiosk to the Actual African Project Site
Africa is not one environmental specification. The purchaser must provide the actual maximum and minimum temperatures, altitude, humidity, dust exposure, rainfall, coastal salt exposure where relevant, solar load, storage duration and maintenance conditions. These inputs influence enclosure materials, coating, seals, heater controls, ventilation strategy and component derating.
For a dusty outdoor site, door and gland sealing, downward entry and maintainable filters or breathers may be important. For a humid coastal site, condensation control and corrosion resistance need attention. For a high-altitude location, component and insulation suitability must be reviewed against the project requirements. Do not copy an IP rating, heater wattage or corrosion category from another country or site.
The kiosk location on the transformer general arrangement also matters. Confirm door swing, safe working access, relationship to radiators and hot surfaces, cable trench position, flood level, escape path and visibility of local indicators. An enclosure can be technically correct yet impossible to wire or maintain after the transformer is installed between a fire wall and fence.
Build FAT Around Point-to-Point Evidence
Document review before energizing test circuits
Before FAT, compare the approved accessory list, schematic, terminal schedule, SCADA I/O list and protection cause-and-effect matrix. Close differences through controlled revisions. The tested drawing must match the equipment on the floor. Marking a drawing “as built” after the test does not correct a test performed against the wrong revision.

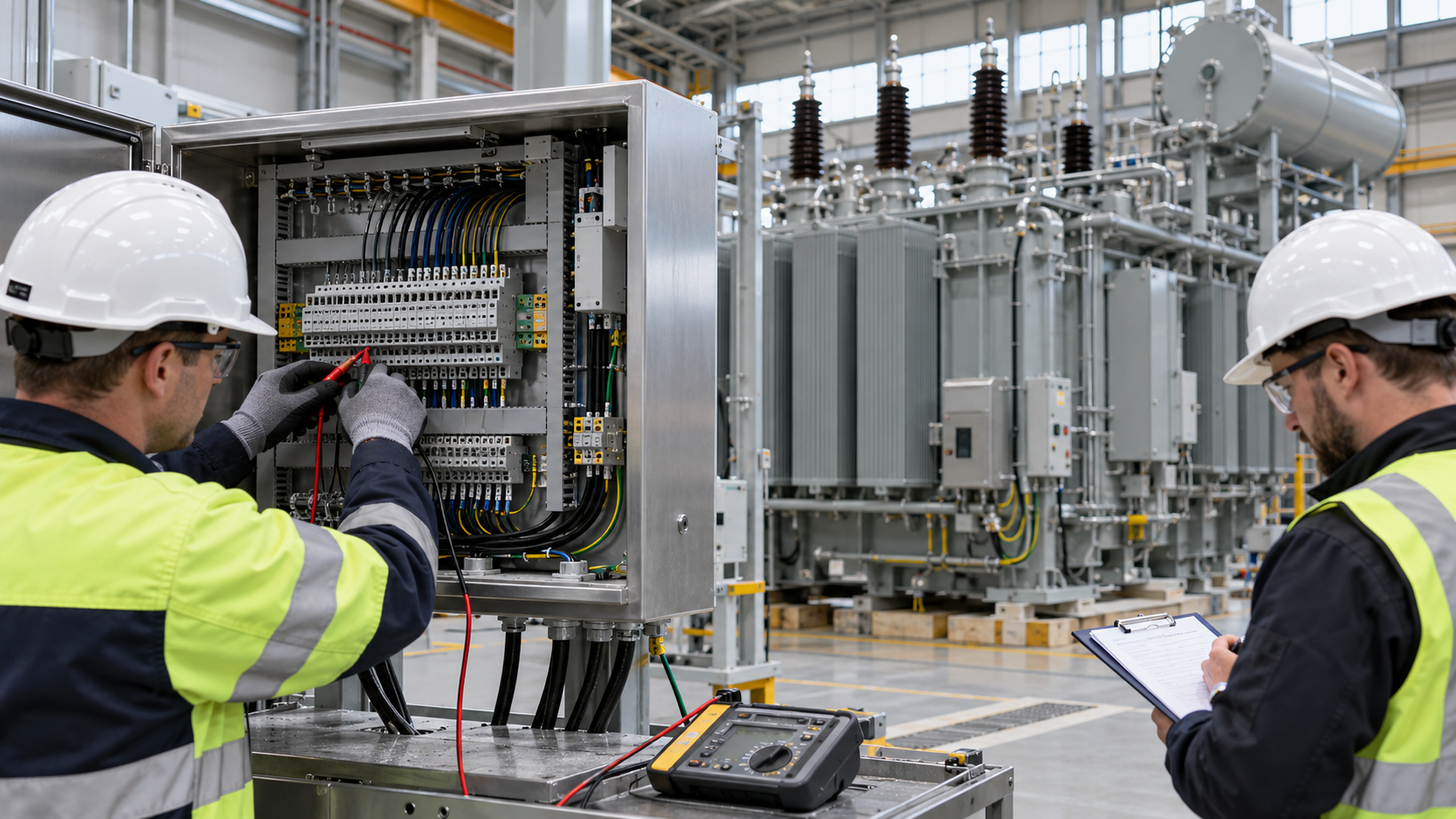

Continuity and functional tests
Point-to-point continuity should trace each field device to the correct terminal. Functional tests should operate devices or simulate their approved inputs and verify local indication, relay operation, fan or pump sequence, alarm contacts and trip contacts. Test loss of relevant auxiliary supplies where required. Record the initial state, stimulus, expected result, observed result and terminal references.
For temperature functions, prove the assigned stages and cooler logic without implying that a simulated contact verifies the transformer’s real thermal performance. For gas, pressure and level devices, follow the manufacturer’s approved test method. For motor circuits, record rotation or sequence where the factory arrangement permits. The FAT should distinguish tested functions from site-dependent circuits that remain open.
Interface simulation
Where the remote protection panel is not present, use a documented simulation panel or test leads. Confirm voltage polarity, wet or dry input assumptions and interposing-relay behavior. Communication links can be checked against an agreed register, but hardwired backup and site network integration still require commissioning. A successful factory simulation is evidence for one boundary, not proof of the complete site system.
The transformer package may be based on an oil-immersed transformer, an integrated substation transformer solution, or a higher-voltage unit such as a 110/115 kV power transformer. In each case, the final I/O count and kiosk arrangement must follow the selected equipment and project interfaces.
Protect the Configuration Through Shipping and Site Work
After FAT, record terminal tightness, temporary links, fuse positions, breaker states and any devices removed for transport. Protect gland plates and door seals. Loose accessories and keys need identified packing. If internal wiring is disconnected for shipping, provide a restoration checklist tied to wire and terminal numbers.
At site, inspect the enclosure before pulling cables. Check transport damage, moisture, corrosion, heater condition and drawing revision. After termination, repeat insulation, continuity and functional checks according to the approved commissioning procedure. Verify each cable core against the cable schedule instead of accepting visual color matching. Record any field change as a controlled redline and incorporate it into the final as-built documents.
Site acceptance should include the actual protection panel and SCADA path. Prove alarm descriptions, time stamps, trip destination, lockout reset, cooler feedback and loss-of-supply indications. Check that maintenance isolation is safe and clearly labeled. Close every temporary bridge used during testing. A signed test sheet without unresolved punch-list references is stronger evidence than photographs alone.
Handover Documents That Keep the Interface Maintainable
The handover package should contain the approved and as-built schematics, terminal plan, cable schedule, I/O list, cause-and-effect matrix, accessory data sheets, auxiliary load schedule, FAT and SAT records, redline register, spare-parts list and maintenance instructions. Include editable schedules where the owner requires future updates, while retaining signed controlled PDFs for the baseline.
Record spare terminal numbers, spare cores and unused glands. Identify interposing relays, fuses, breakers, heaters and thermostats with replaceable part references. If communication is used, include the point register, addresses, settings backup and network boundary. Future plant expansion should begin from this controlled baseline rather than reverse-engineering a crowded kiosk.
Close the Transformer Marshalling Kiosk Interface Before Release
A dependable transformer marshalling kiosk terminal schedule connects the accessory package, protection logic, auxiliary supplies, external cables and SCADA system through one controlled set of references. Freeze functions before terminals, allocate every boundary, check contact duty, segregate circuits, test point to point and preserve the as-built configuration. These steps reduce commissioning delay and give the owner a maintainable interface for later expansion.
For a Zisheng Electric transformer or substation proposal, provide the drawings, data sheets, load list, technical specification, single-line diagram, grid parameters, environmental conditions and installation-site conditions. Include the protection philosophy, SCADA I/O list, auxiliary supply schedule, cable schedule, terminal-numbering standard and FAT witness requirements. Our engineering team will review the requirements and respond to project inquiries within 24 hours.
