Dubai Warehouse Solar Transformer Selection: Reverse Power and Connection Capacity
A warehouse roof can accommodate a large photovoltaic array while its electrical installation has very little spare capacity in the places that matter. That mismatch is easy to miss when procurement starts with roof area and annual energy savings. For a Dubai warehouse solar transformer enquiry to Zisheng Electric, the engineering starting point is the single-line diagram and the operating load profile: what passes through the transformer at night, on a busy working day and during low-load solar production?
Solar generation can reduce imported energy without reducing the transformer rating required for the worst operating condition. It can also reverse the direction of active power while reactive current continues to flow. This guide follows the practical chain from the DEWA connection point through the transformer and warehouse switchboard to the PV inverters. The aim is to build a usable procurement specification, not assume that every rooftop installation needs a new transformer.
Start at the Dubai Connection Boundary, Not the Roof
DEWA’s Shams Dubai information describes grid-connected PV as supplying local loads, with surplus electricity delivered to the grid. That makes the low-load daytime condition relevant to a warehouse assessment. It does not mean an individual project has permission to export any amount it chooses. Confirm the approved connection arrangement and operating conditions for the specific consumption account before selecting equipment.
Official Utility Reference: Dubai Electricity and Water Authority — Shams Dubai FAQs.
The published DEWA connection guidelines cover connections to the low-voltage 230/400 V network and medium-voltage 6.6, 11 or 33 kV networks. Establish which network and ownership boundary actually apply to the warehouse. A shared utility transformer, a customer-owned transformer and a dedicated generation transformer do not give the project team the same freedom to modify equipment.
Official Utility Reference: DEWA — Distributed Renewable Resources Connection Guidelines, Version 2.0.
Ask the responsible consultant to confirm the applicable document revisions and current project approval conditions. Keep three quantities separate in the procurement file: the transformer nameplate rating, the building’s approved import capacity and the approved PV connection capacity. None is a substitute for the others. Buying a larger transformer does not itself enlarge the utility-approved connection.
Dubai Warehouse Solar Transformer Sizing Needs Several Load Cases
Collect interval demand data where available, together with the tenant operating schedule. Monthly electricity consumption cannot show a short heavy loading period or a quiet daytime export condition. Record refrigeration, ventilation, lighting, conveyors, battery chargers and any future tenant loads separately. A warehouse with continuous cold storage will behave differently from one that largely closes after its dispatch shift.
Use AC inverter output when assessing the AC network. Module capacity in kWp is a DC array rating; it is not automatically the maximum AC power at the switchboard. Identify inverter limits, simultaneous operation and any approved power-control functions. Do not deduct the whole PV array capacity from the building demand and call the difference the required transformer size.
Follow Active and Reactive Power Through the Same Boundary
For a simplified balanced, fundamental-frequency calculation, define import as positive. Transformer active power is approximately warehouse demand minus PV AC generation: PT = Pload − PPV. With consistent reactive-power signs, QT = Qload − QPV, and ST = √(PT2 + QT2). Account separately for losses, harmonics, imbalance, temperature and design margin.
The following arithmetic example assumes PV operates at unity power factor, so it contributes no reactive power. These are illustrative operating points, not measured Dubai site data or a recommended equipment rating. Real selection requires the complete time profile and the actual inverter control settings.
| Illustrative operating point | Power through transformer | Procurement consequence |
|---|---|---|
| Night: load 450 kW and 150 kvar; PV 0 kW | 450 kW import; approximately 474 kVA. | PV does not reduce the required night-time import duty. |
| Working day: load 300 kW and 120 kvar; PV 400 kW | 100 kW export and 120 kvar import; approximately 156 kVA. | Active-power reversal does not mean reactive current has disappeared. |
| Low-load day: load 60 kW and 40 kvar; PV 400 kW | 340 kW export and 40 kvar import; approximately 342 kVA. | Check permitted export, voltage rise and reverse-direction operation. |
| PV unavailable during daytime demand | Use the warehouse load without assumed solar contribution. | Do not make warehouse continuity depend on sunshine unless load shedding is intentionally designed. |
In this example, a 400 kVA oil-immersed transformer would already be below the calculated 474 kVA night-time duty, before additional allowances. Its availability or attractive purchase price cannot resolve that mismatch. Compare the required duty with the offered rating rather than selecting a familiar catalogue size first.
Confirm Reverse-Flow Suitability Beyond the Windings
An ordinary transformer is not a one-way power device, but that fact alone does not qualify an existing installation for generation export. Obtain confirmation for the proposed duty from the equipment manufacturer and the responsible designer. Review voltage ratio, tap position, neutral arrangement, accessories, protection, metering and the connected switchgear as one system.
With import, current flowing through network impedance tends to produce a voltage drop toward the load. With export, the operating voltage relationship can reverse. A tap selected to help a heavily loaded warehouse at night may give an unsuitable inverter-terminal voltage during strong generation and low demand. Request a voltage study covering high and low supply conditions in both directions.
Do Not Use a Tap Change to Hide a Network Problem
The study should include transformer impedance and the resistance and reactance of the actual cables. Long rooftop-to-switchboard cable routes can matter even when the transformer rating is adequate. Check the inverter operating window against the calculated terminal voltage, using approved limits. A tap adjustment cannot compensate for every combination of supply variation, cable voltage rise and changing load.
Document which winding carries the taps, the selected position and the available range. An off-circuit tap changer must not be treated as an automatic daytime voltage controller. Any adjustment belongs under the manufacturer’s instructions, the site’s isolation procedure and the approved operating plan. If regulation is needed during operation, assess the appropriate control arrangement rather than improvising a maintenance action.
Check Switchboard Sections and Protection in Both Directions
A low net current at the transformer does not prove every busbar or feeder is lightly loaded. PV and grid sources can feed a common load through different switchboard sections. Draw the current paths for each operating case, including bus-coupler positions and tenant supply arrangements. Check individual cable and busbar sections, not only the main incomer reading.
| Project condition | Main risk | Engineering check |
|---|---|---|
| PV connected downstream of the warehouse transformer | Reverse active power is not represented in existing studies. | Update load-flow cases, direction-sensitive functions and metering polarity. |
| Several PV feeders and warehouse loads share a board | Net import hides a heavily loaded busbar section. | Calculate current in each section for the actual source and load positions. |
| Standby generator can supply warehouse loads | Unintended PV-generator interaction or an unapproved island. | Define PV shutdown, interlocking and any specifically engineered island mode. |
| Power-factor correction remains on the LV bus | Capacitor switching or control may be unsuitable at low net demand. | Review reactive-power control, resonance risk and operating combinations. |
| Tenant use or battery charging expands later | The original demand profile no longer bounds operation. | Reserve a documented growth allowance and reassess the connection before expansion. |
Check the fault study with the inverter manufacturer’s fault-current characteristics. Do not model an inverter as a conventional rotating generator. Protection settings and disconnection behaviour must be coordinated with the approved design. Transformer protection, inverter protection and the utility interface each have a role; one set of functions should not be assumed to replace the others.
If export limitation forms part of the approved arrangement, define the measurement point, control response and safe behaviour after a communications or control failure. An export controller is not a blanket substitute for connection approval, equipment ratings or required protection. Specify who will demonstrate the complete control chain during commissioning.
Specify Cooling and Power Quality for the Actual Installation
From Zisheng Electric’s engineering perspective, a useful procurement question is not simply “Can this transformer work in Dubai?” It is “What temperature, enclosure, load cycle and waveform must the offered rating cover?” Obtain the project ambient conditions and the temperature expected at the cooling-air inlet. The latter can differ from an outdoor weather reading when a transformer sits inside a poorly ventilated room.
Check ventilation openings, recirculation paths, access for cleaning and any dust-loading assumptions in the design. For outdoor equipment, identify direct solar exposure and the actual contamination conditions rather than assigning one generic coastal specification to the whole emirate. State the required performance under those conditions and ask the bidder to disclose derating or cooling dependencies.
PV inverters, variable-speed drives and chargers can all influence power quality, but their nameplate powers do not establish the combined harmonic spectrum. Obtain equipment data and the project study. Compare the offered transformer’s loss and thermal assumptions with the expected current waveform. Our UAE transformer guidance on harmonics and high-ambient design discusses related design checks; a warehouse still needs its own load model.

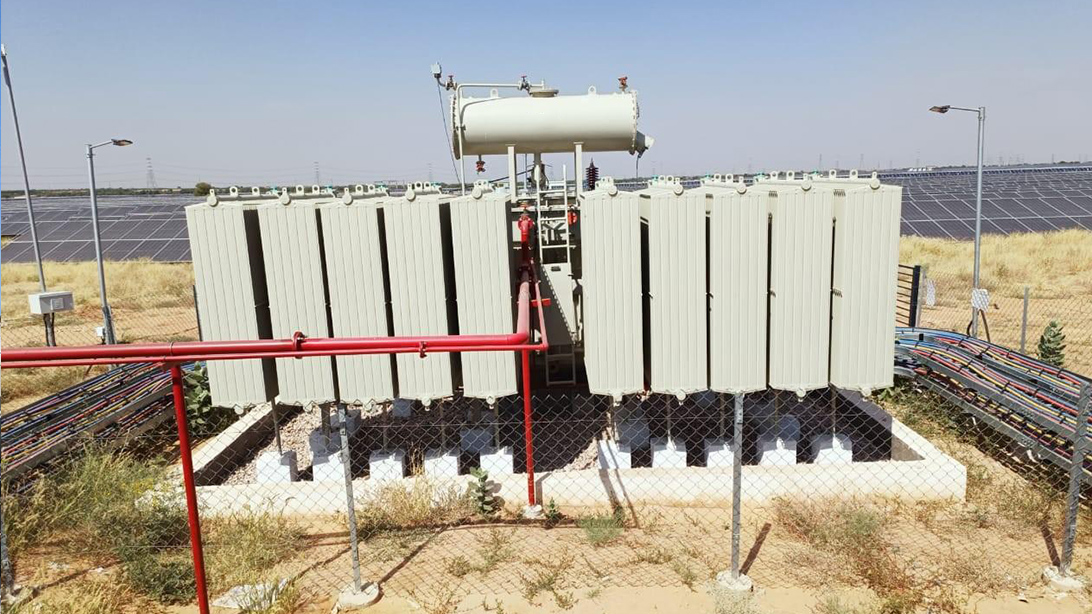

Oil-immersed and dry-type options should be compared against location, fire strategy, ventilation, maintenance and the required duty. For a separate small auxiliary supply, a 200 kVA dry-type transformer is a product category that may enter the comparison, not a recommendation for the common transformer in the worked example. Confirm the voltage ratio and approved scope before using any catalogue model.
Regional requirements must stay distinct. A Saudi solar transformer selection guide can help identify questions about a different market, but its utility conditions and equipment assumptions should not be copied into a Dubai purchase order. Shared climate concerns do not make two connection specifications interchangeable.
Separate Factory Acceptance from PV Connection Approval
Write the transformer purchase specification around the approved duty and applicable technical documents. Request the agreed factory test records, equipment identification, connection diagram, impedance and loss information, accessory checks and installation instructions. If the transformer is existing, gather its available records and condition information before deciding whether replacement is justified.
DEWA publishes a separate inspection and testing guideline for distributed renewable generation, covering site assessment before and after temporary connection and the relevant responsibilities. Its role is different from a transformer factory test report. The project consultant should identify the applicable current inspection sequence and required submissions for this installation.
Official Utility Reference: DEWA — DRRG Inspection and Testing Guideline, Version 2.0.
Before energization, the authorized commissioning team should verify the installed configuration against the approved single-line diagram. Include phase identification, metering direction, CT polarity, protection settings, control interlocks and any approved export limitation in the test plan. Simulation of a signal is useful only when its boundary is understood; it does not necessarily prove the entire trip or control path.
Retain the results with the as-built drawings and settings records. A later tenant change, larger inverter installation or revised bus-coupler arrangement can invalidate earlier assumptions. Give the warehouse operator a clear route for reviewing changes rather than leaving the PV installer and facilities team with conflicting versions of the system.
Send a Duty-Based Enquiry, Not Just a Solar Capacity
For a Dubai warehouse solar transformer review, send the single-line diagram, transformer datasheet or existing nameplate, interval load data, inverter AC ratings, reactive-power settings, cable details, site conditions and available DEWA connection information. Include the night-time load, the lowest credible daytime load and any standby-generation arrangement. Flag proposed tenant or charging expansion.
Zisheng Electric can provide technical matching for relevant oil-immersed transformers, dry-type transformers and related distribution equipment based on project capacity, voltage level, environmental conditions and technical specifications. Our engineering team will review the requirements and respond to project inquiries within 24 hours. The final equipment selection should follow the approved connection design and a documented comparison of import, export and abnormal operating cases.
