Transformer Oil Sampling Access for African Industrial Sites: Valve Layout, Containment and Handover
Zisheng Electric treats transformer oil sampling access as part of the equipment and site interface, not a maintenance detail to be solved after energization. A sampling point can be shown on a drawing and still be difficult to use: the valve may sit behind a radiator, above a cable trench, inside a fenced corner, or directly over an area where a small spill cannot be contained. For an African industrial project, those layout choices affect whether the owner can collect a clean, traceable sample years after handover.
This guide is written for EPC teams, industrial owners and distributors specifying oil-immersed transformers. It focuses on the physical arrangement and the information needed to commission a workable sampling process. The project should adopt its own approved safety procedure and laboratory method. Neither a photograph nor a generic valve detail establishes that a particular site is safe to sample.
Why transformer oil sampling access belongs in the purchase specification
Oil analysis only helps a maintenance program when the sample is representative, identifiable and collected without introducing avoidable contamination. A valve that cannot be reached with the intended container encourages improvised tubing or awkward transfer steps. A valve without a cap, drain arrangement or clear identifier can confuse the main tank sample with a tap-changer compartment sample. The laboratory may report a number accurately, yet the engineering decision will be based on the wrong source or a compromised sample.
Access also has a commercial consequence. The EPC may provide the transformer while the owner contracts a separate maintenance company. If the tender merely says “sampling valve provided,” the valve location, collection fitting, isolation requirement and responsibility for final procedure can fall between contracts. Zisheng Electric recommends showing the sampling points on a general arrangement drawing and listing them in the accessory schedule before the arrangement is frozen.
The issue differs from transport preservation. Our guide to transformer warehouse storage for African distributors addresses custody before installation; this article addresses the routine service path after handover. Both need traceable openings and a named person responsible for protecting them.
Map each oil compartment before selecting the valve
Begin with the approved oil system diagram. Identify the main tank, any separate on-load tap-changer oil compartment, conservator arrangements and auxiliary equipment for which the owner actually requires sampling. The supplier should distinguish a sample point from a drain or filling point. A drain may be mechanically convenient yet unsuitable for the agreed laboratory procedure or difficult to purge without losing excessive oil.
Keep sample identities separate
Where an on-load tap changer has an independent oil circuit, its sampling point and records should be clearly separated from the main tank. A mixed or mislabeled sample can lead to a misleading trend and unnecessary intervention. The exact compartment design varies; the purchaser should request the manufacturer’s oil-system schematic and sampling instructions rather than assume every transformer has the same arrangement. Our tap changer selection guide for mining explains why maintenance access should be assessed with the voltage-control choice.
For each point, record the valve tag, compartment, valve type and connection, cap or plug, normal position, approved sample container and any isolation or operating restriction. If a valve is hidden behind a removable panel, state who removes the panel and how the equipment remains protected while it is open. Do not put this information only in a supplier brochure; it belongs in controlled drawings and the site procedure.
Design a service path that a technician can actually use

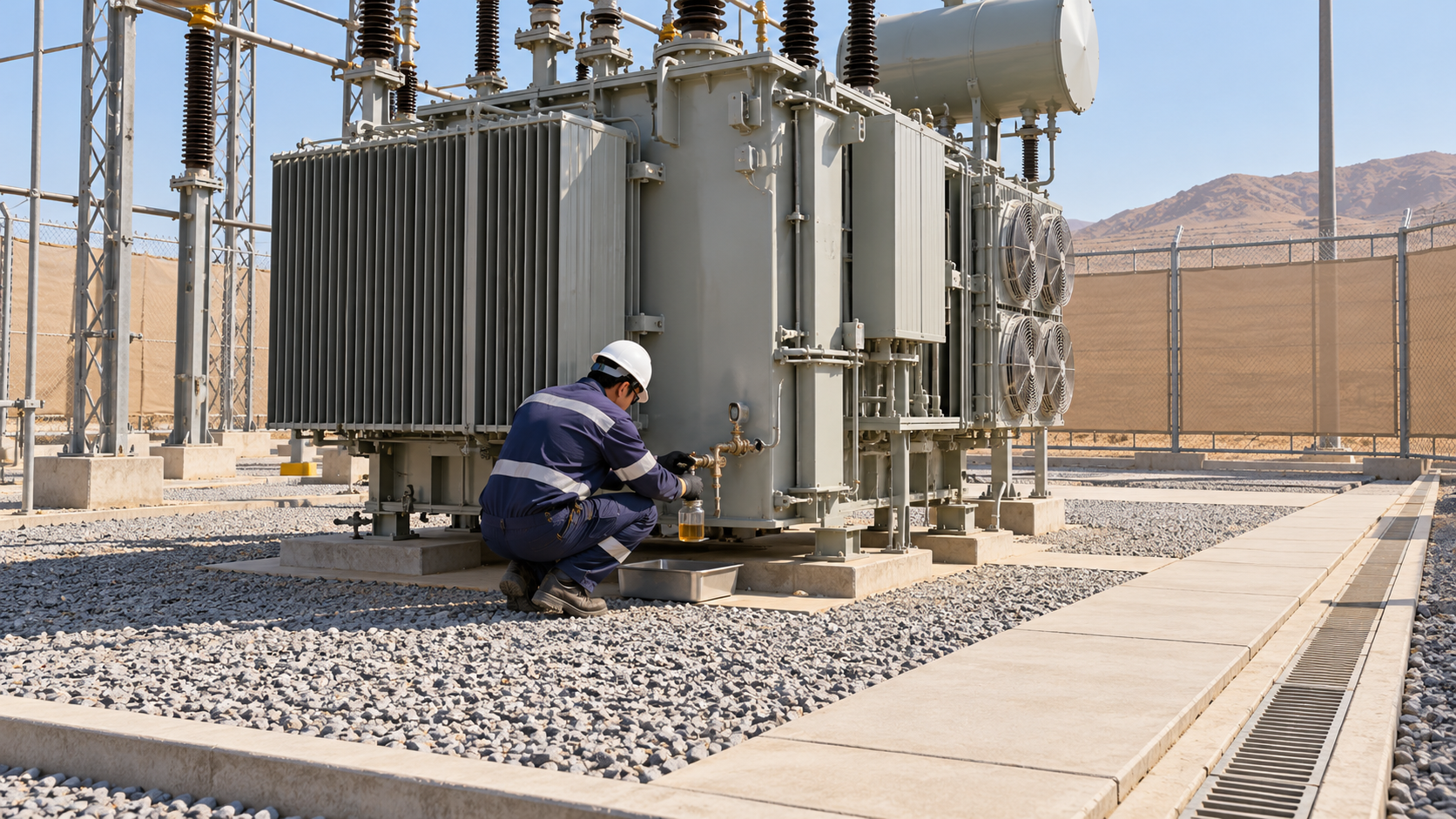

Plot the route from the site gate or maintenance access to the sample point. The path should account for fences, cable trenches, radiator banks, oil bunds, pipework, step heights and the space needed for a sample bottle or syringe. The technician should not need to lean into energized equipment or place a container on an unstable surface. Any required platform, handrail or removable barrier must be assigned to a design package, not left as a field improvisation.
The desired position is determined by the arrangement of the transformer and the approved procedure. It is unsafe to publish a universal height or clearance here. Instead, the EPC should show a person, container and containment tray in a scaled access study and obtain operations review. If site security requires a locked enclosure, check that the maintenance crew can access the valve without disabling unrelated protection or moving permanent equipment.
For outdoor industrial plants, ask how dust, rain, direct sun and site drainage affect the work area. African projects span very different climates and elevations; the contract should carry the actual ambient profile and site conditions. A sandy location may call for additional protection of valve caps and containers. A humid or coastal location may need attention to corrosion and clean storage of sampling equipment. These are design prompts, not country-wide assumptions.
Control contamination at the sampling interface
A clean sample starts before the valve is opened. The approved method should define the cleaning of the valve outlet and fitting, any flushing volume, the container and its closure, and the sequence used to prevent air or moisture entry. The method depends on the requested analysis and the equipment condition. The field crew should not substitute an unapproved container because it is easier to carry to a remote site.
IEC 60475:2022 addresses procedures for sampling insulating liquids in electrical equipment. IEC 60567:2023 covers free-gas sampling and analysis of free and dissolved gases; its current edition points oil sampling methods to IEC 60475. IEC 60422:2024 provides supervision and maintenance guidance for mineral insulating oils. These documents serve different purposes. A procurement specification should name the edition and method actually adopted by the owner and laboratory instead of citing “IEC oil test” without a procedure.
Protect the sample fitting during shipping, installation and painting. If a valve cap is removed during assembly, the handover inspection should confirm its replacement, cleanliness and leak tightness. The site team should know whether the valve is in a location that can collect standing water or debris. Periodic maintenance instructions should include a visual check of cap condition, valve identification and the immediate work area.
Provide containment for routine sampling and abnormal release
Even a well-controlled sample can involve small amounts of drained or flushed oil. Identify where that liquid goes. A portable drip tray may be suitable for a particular valve, but the arrangement must allow it to sit securely and be removed without crossing a cable trench or contaminating the gravel. The EPC should align the sampling procedure with the site oil-containment and waste-handling plan. The project owner must verify applicable local environmental requirements; this article does not presume one rule across countries.
Consider a valve failure or accidental opening as a separate case from routine sampling. The response plan may involve isolation, spill materials and owner notification. Do not describe a small tray as a complete secondary containment system. The valve layout should also avoid discharging toward switchgear, cable entries or a frequently occupied walkway. Such interfaces are best resolved on the general arrangement drawing before foundation and bund details are issued.
Where a distributor supplies a transformer to multiple possible sites, include a generic sampling accessory package and leave clearly defined site-specific details for the final EPC. Our transformer maintenance guide covers broader service planning; the present checklist narrows the question to whether the sampling point and workflow are physically usable.
Decision table for the EPC interface review
The table below converts a vague “sampling provision” line into items that can be checked at drawing review and handover. The values and methods remain project-specific.
| Decision item | Evidence to request | Why it affects procurement or operation |
|---|---|---|
| Oil compartments and sample points | Oil-system schematic, valve schedule and marked general arrangement | Prevents main-tank and separate compartment samples from being confused. |
| Valve and connection | Approved valve detail, cap, fitting and container compatibility | A laboratory method is difficult to repeat if field crews improvise adapters. |
| Physical reach | Scaled access drawing, maintenance route and operations review | Determines whether a technician can work without moving permanent equipment. |
| Sample integrity | Cleaning, flushing, container and closure procedure | Reduces avoidable contamination and inconsistent trends. |
| Oil containment | Tray or bund interface and waste-handling responsibility | Separates normal sampling loss from spill response obligations. |
| Handover | Valve tags, as-built drawings, training record and first sample plan | Lets the owner repeat the same method after the supplier leaves site. |
Make the drawing review a cross-discipline task
The transformer supplier can show a valve on its tank drawing, but the EPC controls the foundation, access, bund and surrounding equipment. Put the valve coordinates and required working envelope into the interface register. Civil engineering should confirm the bund edge and trench locations. Electrical design should check nearby live parts and earthing continuity. Operations should review the sampling route and likely equipment used by its laboratory contractor.
Resolve these points before the general arrangement is approved for manufacture. Late changes can require new pipework, altered guards or a special platform. If the owner wants an online monitoring device as well as manual sampling, treat the two connections separately. State the sampling and calibration arrangement for the monitor and retain a manual sample path suitable for the approved condition-monitoring plan. Do not assume an online device removes the need for physical access.
At the factory, inspect that the agreed valve, cap and tag are fitted in the approved location. A photograph can document configuration, but it does not prove sample integrity or laboratory results. Record the inspection against the drawing revision. During installation, repeat the check after pipework, guards and bund details are complete. A valve accessible in the factory can become inaccessible once the EPC installs a fence or fire wall.
Commissioning, baseline sampling and chain of custody
The first service sample should have a defined purpose and timing. The contract may call for an oil baseline after filling, after site processing, before energization or after an initial period in service; these are different states and should not be compared without context. Record the transformer identifier, compartment, sample point, operating state, date, ambient conditions and any oil treatment or top-up since the previous sample. The laboratory instructions should determine the container, transport conditions and turnaround.
The handover package should include the sampling procedure, valve drawing, as-built tags, laboratory contact, analysis schedule, chain-of-custody template and escalation path for an unexpected result. A trend is only meaningful when repeat samples use a consistent source and method. If a site sample conflicts with the factory baseline, review the chronology and handling before drawing a fault conclusion.
Transport conditions matter in remote projects. A sample may travel by road for many hours before it reaches a laboratory; the owner should select containers and handling procedures that suit the intended test. Where a local laboratory cannot perform an analysis, the procurement team should address shipping, custody and response time in the service agreement. The country, route and laboratory capability must be verified for the actual project.
What to include in the purchase order
Ask the supplier to identify the number and purpose of sampling points, valve hardware, seals, caps and tags. Request a marked drawing showing access with radiators, barriers and cable routes installed, plus a service procedure that identifies the adopted sampling standard and laboratory method. Define whether sample bottles, adapters, flushing containers, portable trays and initial spares are in supplier or owner scope. The quote should state any exclusions.
Review the product configuration at the same time. Zisheng Electric can discuss sampling provisions for a 10 MVA 33/11 kV oil-immersed power transformer or a 110/115 kV power transformer, provided the actual rating and interface requirements are established in the project documents. Those product pages illustrate available equipment types; they do not substitute for an approved site-specific drawing.
Close the transformer oil sampling access gap before handover
Good transformer oil sampling access joins the tank design, civil layout, safe work procedure and laboratory chain of custody. Confirm the sample compartments, valve position, fitting, clean collection method, containment and documentation at drawing review. Then inspect the physical route again after installation. That sequence gives the owner a repeatable maintenance interface rather than an unused valve on a drawing.
For a Zisheng Electric oil-immersed transformer proposal, send the single-line diagram, transformer drawings, technical datasheet, load list, procurement specification, grid parameters, environmental conditions and site installation constraints. Include the intended oil tests, laboratory method and sample logistics. Our engineering team will review the requirements and respond to project inquiries within 24 hours.
