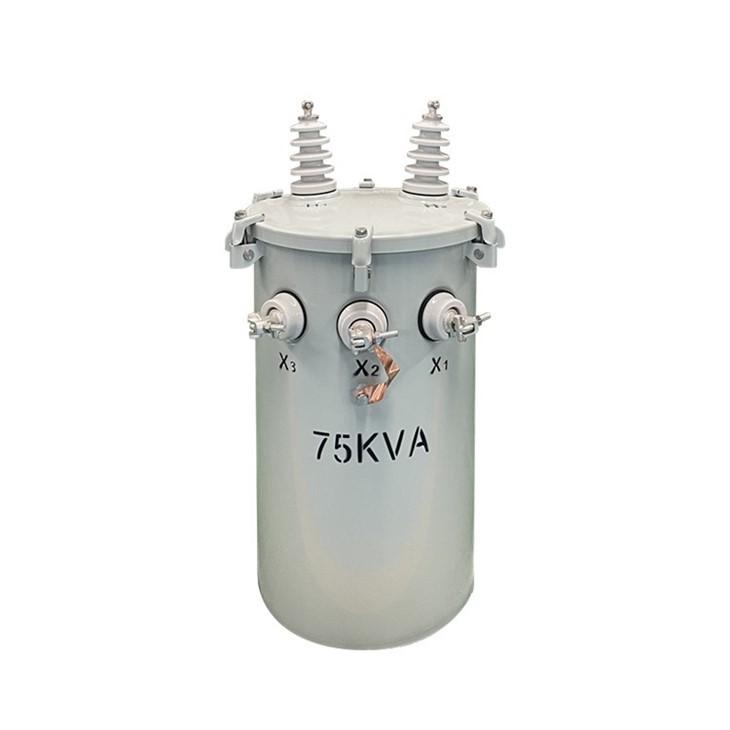

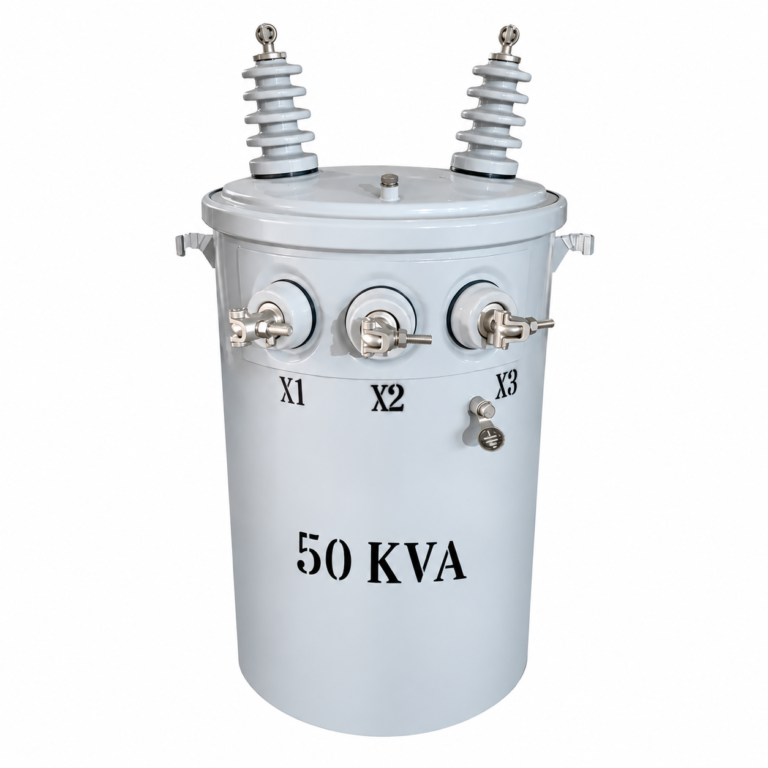

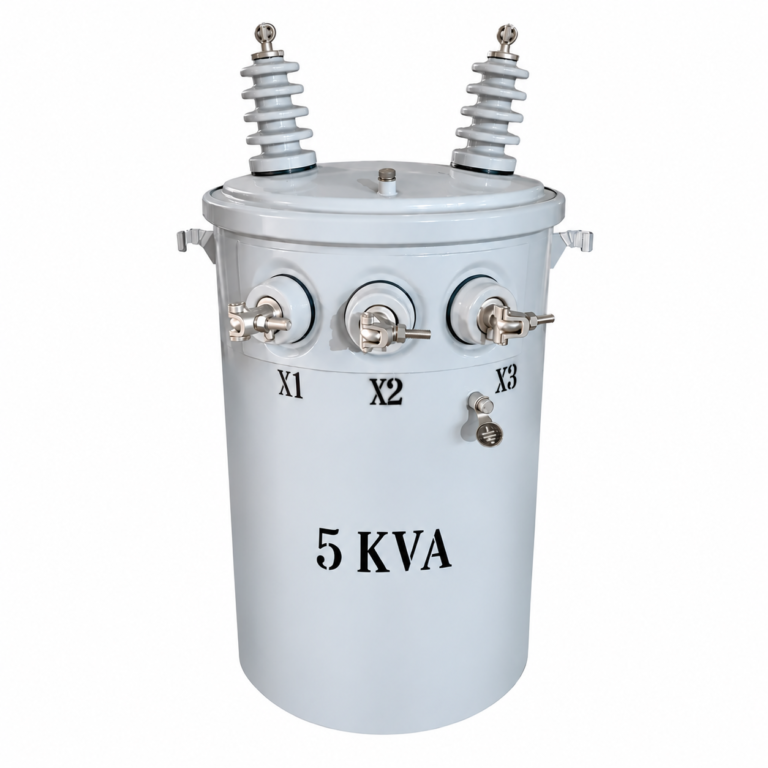

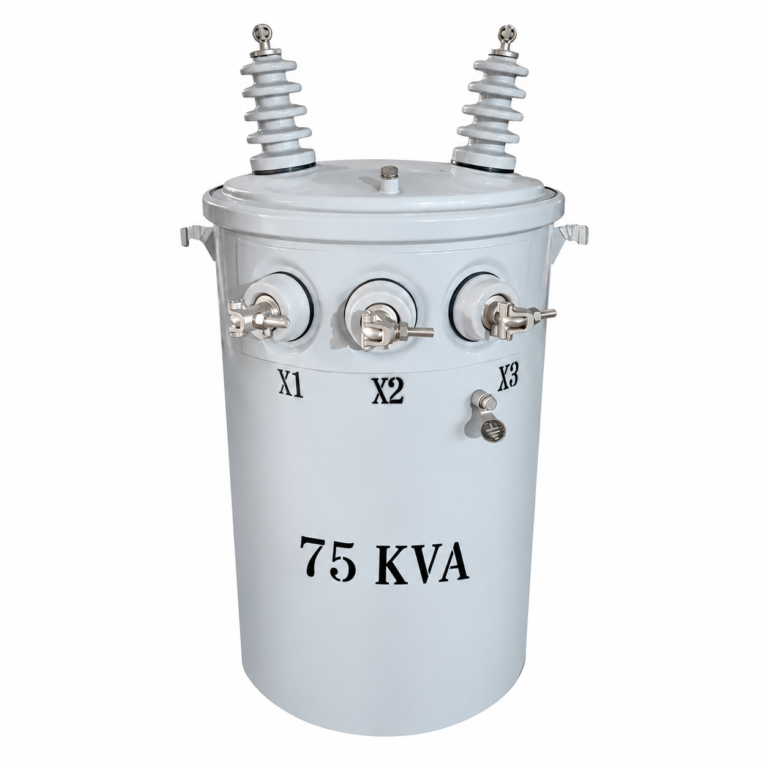

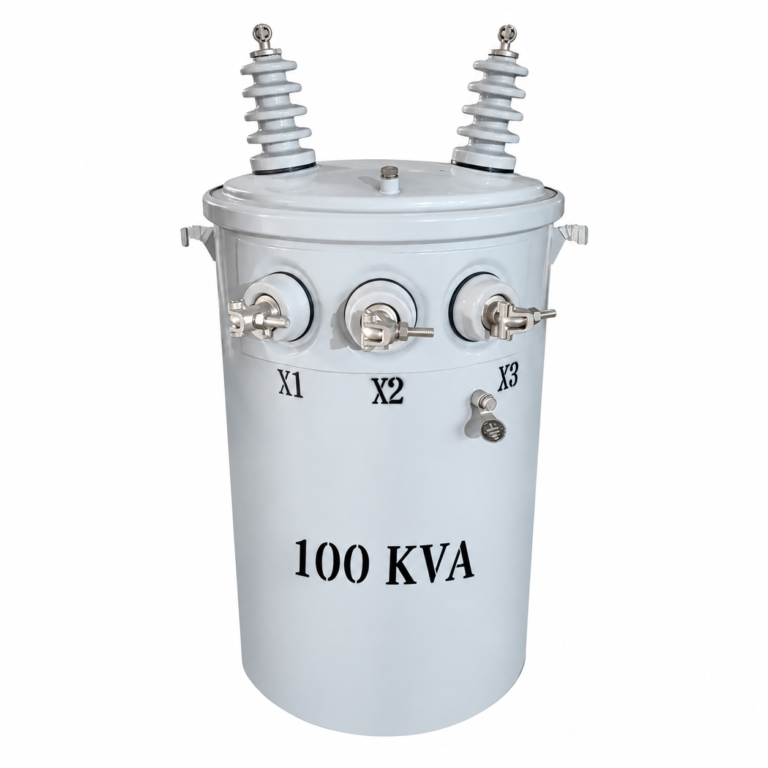

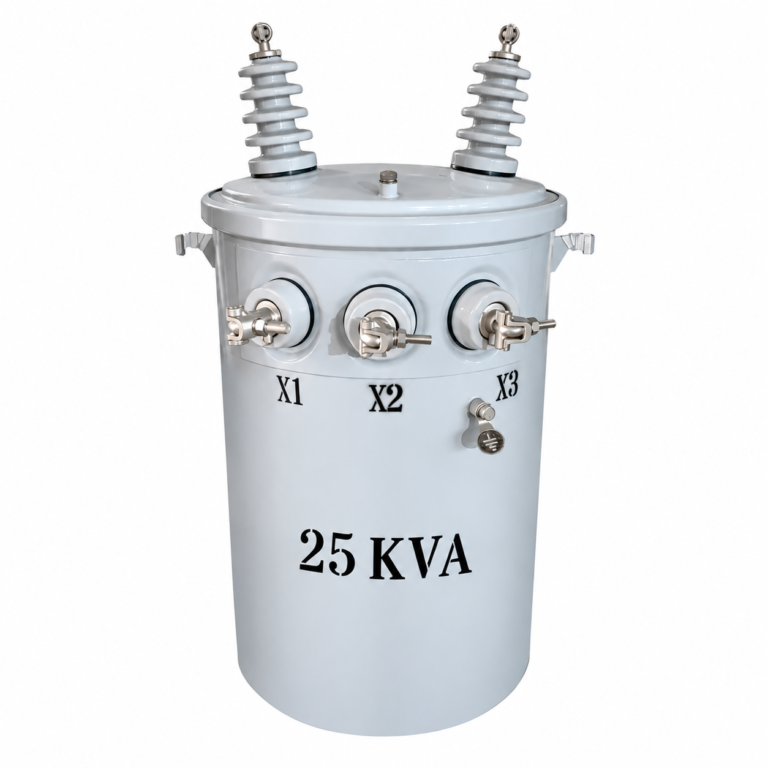

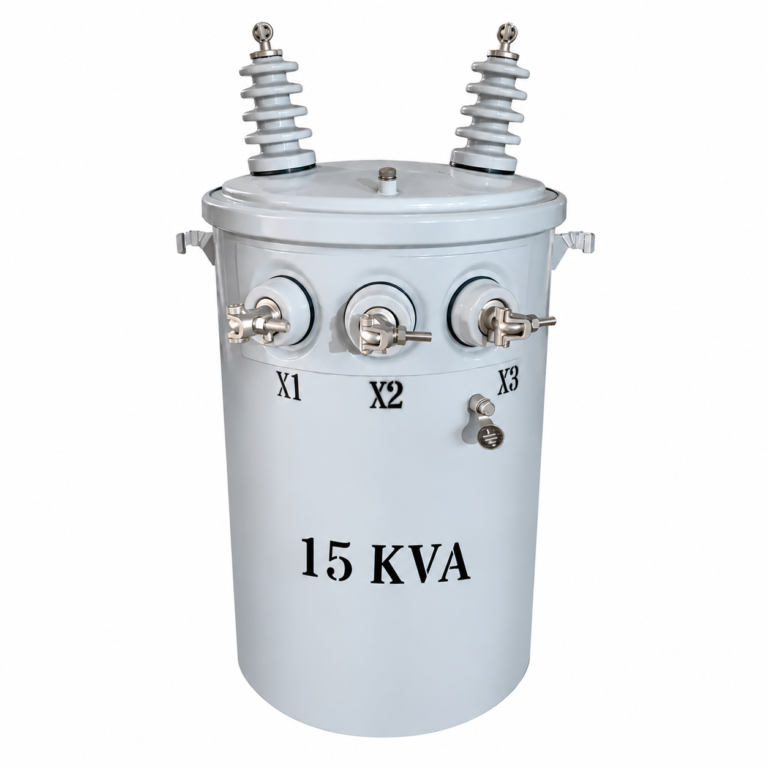

Pole Mounted Transformer

Reliable Overhead Pole Mounted Transformers for Utility Grids

As a premier high-tech electrical manufacturer established in 2014, ZISHENG is dedicated to producing top-tier pole mounted transformers for overhead distribution lines. Designed for direct mounting on utility poles (wooden, concrete, or steel), these transformers are the critical final link in delivering safe, usable electricity to homes and businesses. Our engineering team focuses on minimizing weight while maximizing structural integrity and energy efficiency, ensuring rapid installation and decades of maintenance-free operation.

Advanced Weatherproof and Anti-Corrosion Design

Because overhead transformers are constantly exposed to the elements, their external durability is just as important as their internal electrical performance. ZISHENG employs advanced manufacturing techniques to guarantee longevity:

• Heavy-Duty Cylindrical & Rectangular Tanks: Fabricated from premium cold-rolled carbon steel or stainless steel. The continuous automated seam welding process ensures a 100% leak-proof hermetic seal, protecting the insulating oil from moisture and oxidation.
• Superior Surface Treatment: Each tank undergoes rigorous shot blasting followed by a multi-layer electrostatic powder coating (typically utility gray or custom specified). This provides exceptional resistance to UV radiation, industrial pollution, and coastal salt fog.
• High-Quality Bushings & Bird Guards: We utilize premium porcelain or polymer high-voltage and low-voltage bushings, engineered with optimal creepage distances to prevent flashovers. Optional wildlife guards (bird guards) are available to prevent wildlife-induced short circuits.
• High-Efficiency Cores: Available with traditional cold-rolled grain-oriented silicon steel cores or advanced Amorphous Metal Cores (AMC) for ultra-low no-load losses, significantly reducing total ownership costs for utility companies.

CSP vs. Conventional Configurations

Backed by extensive R&D and 21 utility model patents, ZISHENG manufactures both primary types of pole mounted transformers to meet your specific grid protection strategy:

• Completely Self-Protected (CSP) Transformers: These units come with built-in lightning arresters, an internal primary protective link (expulsion fuse), and a secondary circuit breaker. They offer comprehensive protection against lightning surges, severe overloads, and secondary short circuits, significantly reducing line maintenance and outage times.
• Conventional Transformers: Designed for utility grids that rely on external cut-out fuses and separate pole-mounted surge arresters. They offer a simpler, highly cost-effective, and lightweight construction for standard distribution setups.

Ideal Applications for Overhead Distribution

Trusted by state grids and international EPC contractors, our overhead distribution transformers are deployed across diverse environments:

• Rural Electrification: Cost-effective single-phase step-down solutions for long-distance, lightly loaded agricultural and remote residential areas.
• Urban & Suburban Networks: Reliable three-phase power for residential neighborhoods and light commercial strips.
• Industrial Outposts: Supplying dedicated overhead power to mining camps, water pumping stations, and telecommunication towers.

Technical Specifications & OEM Customization

ZISHENG is a verified supplier under the Chinese State Administration for Market Regulation. We provide full OEM and ODM services, engineering our pole mounted transformers to comply with ANSI/IEEE C57.12.20, IEC 60076, and other regional standards.

Frequently Asked Questions (FAQs)

Q: What is the main benefit of choosing an Amorphous Metal Core for pole mounted transformers?

A: Amorphous metal cores have a randomized atomic structure that makes them much easier to magnetize and demagnetize compared to traditional silicon steel. This can reduce no-load losses (iron losses) by up to 70%. For utility companies running thousands of transformers 24/7, this translates to massive energy and cost savings over the equipment’s lifespan.

Q: Does ZISHENG provide mounting hardware?

A: Yes. We manufacture transformers with standardized hanger brackets (Type A, B, or C depending on capacity and standard) securely welded to the tank. We can also supply the necessary crossarms, bolts, and surge arresters as part of a complete OEM package.

Q: Can these transformers operate in high-altitude or extreme temperature regions?

A: Absolutely. Our R&D team can customize the insulating oil properties, bushing creepage distances, and tank coatings to ensure stable operation in extreme cold, high-altitude low-air-density environments, or intense tropical heat.

Q: What quality tests do you perform before shipping?

A: Operating under ISO 9001 and ISO 45001 systems, every unit undergoes strict routine tests, including winding resistance, voltage ratio, load loss, no-load loss, and dielectric strength tests (applied and induced overvoltage). We guarantee a 100% pass rate before the equipment leaves our factory.

Upgrade Your Overhead Power Lines with ZISHENG

Do not compromise on the final link of your power distribution network. Partner with a factory that delivers proven technology, exceptional durability, and flexible cooperation mechanisms. Send us your technical requirements or bidding documents today, and our engineering team will provide a comprehensive, competitive OEM proposal.
