100kVA Single Phase Pad Mounted Transformer

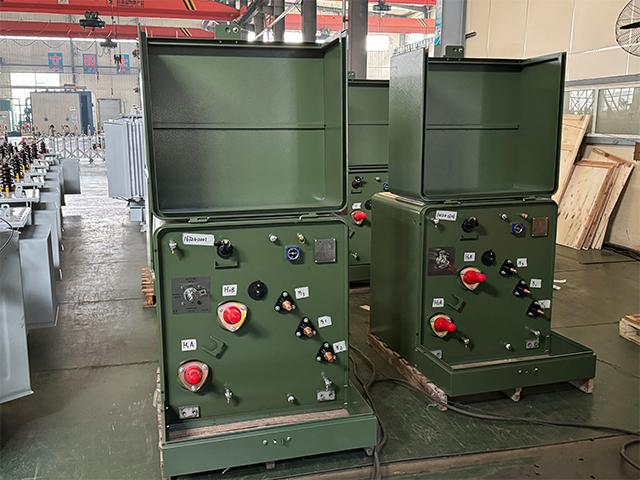

The 100 kVA Single Phase Pad Mounted transformer adheres to a compartmental-type structure in line with IEEE Std C57.12.28 or IEEE Std C57.12.29 standards. It consists of a tank housing high-voltage and low-voltage cable terminating compartments, thoughtfully positioned side by side along one face of the transformer tank. In this configuration, the high-voltage compartment, fitted with two internally connected high-voltage bushing wells and inserts, a 4-position loadbreak switch, a 5-position tap changer switch, and a bayonet fuse, is situated alongside the low-voltage compartment featuring three stud L.V bushings and an oil level gauge.

About ZISHENG ELECTRICAL

Zisheng are a professional 19+ years manufacturer in producing Oil-Immersed Transformers, Compact Substation, Pad Mounted Transformers, Pole Mounted Transformers and Dry Type Transformers. We own the certificates of ISO/CE/IEC 60076 and TUV Rheinland.
Transformers undergo rigorous FAT and type testing, support voltage/capacity customization. Welcome to consult for Catalog and Product. you can contact us at email [email protected].

Project Case | Residential Underground Distribution

Product: 100kVA Single Phase Pad Mounted Transformer

Location: Canada

Application: Residential Power Distribution Network

Project Overview

A residential development project in Canada installed 42 units of 100kVA Single Phase Pad Mounted Transformers to support a new underground distribution network. Designed to meet ANSI/IEEE standards, the transformers provide reliable power to homes, public facilities, and community infrastructure while ensuring safe operation in outdoor environments.

Product Specifications

Capacity: 100kVA
Phase: Single Phase
Primary Voltage: 13.8kV
Secondary Voltage: 120/240V
Frequency: 60Hz
Cooling Method: ONAN
Standard: ANSI/IEEE

Project Benefits

Reliable underground power distribution
Low energy losses and high efficiency
Compact, tamper-resistant enclosure
Reduced maintenance requirements
Long-term outdoor reliability

Rated Power	100 kVA
Rating Primary Voltage	11950Delta or Customized
Secondary Voltage	480-240V 240-120V 277V Customized
Frequency	50/60Hz
Vector Group	Ii0,Ii6
Winding Material	Aluminum/Copper
Efficiency	As IEEE,Doe 2016,CAS Std or Customized
Impedance Voltage	Nominal 2% or Customized 1.1-5.75%
Altitude	≤1,000m or Customized
Color	ANSI 70 Light gray/Munsell 7GY3.29/1.5 or customized etc
Tank material	Mild Steel, 304 Stainless Steel
Insulating Oil Weight	230kg
Total Weight	710 kg
Outline Dimensions（L×W×H）in.	1200×965×910(mm)

Lifting Lug	ELSP Fuse
Hinged Door	BAY-O-NET Fuse
Parking Bracket	Tap Changer
Tank Cover	Oil Level Gauge
L.V Bushing (4-Hole )	Pressure Relief Valve
Two/Four Position Load break Switch	Vacuum Pressure Gauge
HV Grounding Copper Bar	Terminal Block
Temperature Indicator	Door Handle
H.V Bushing Well	Ground Strap
Grounding Copper Bar	Nameplate
1″‘Drain Valve With 3/8″ Sampler	Non-PCB decal
1″ Upper Fill Valve Filter Press Connection	High Voltage Warning Signs

Residential Communities
Commercial Buildings
Utility Distribution Networks
Schools & Hospitals
Solar Power Projects
Public Infrastructure

It is an oil-filled transformer installed at ground level for underground distribution systems, commonly used in residential communities, commercial facilities, and utility power networks.

Typical configurations include:

Primary Voltage: 7.2kV, 11kV, 13.8kV, 22kV, 33kV
Secondary Voltage: 120/240V, 240/480V, or customized

Yes. We provide customized solutions for voltage, frequency, winding material, insulating oil, enclosure finish, accessories, and customer nameplates.

Our transformers can be manufactured according to:

ANSI C57 Series
IEEE Standards
IEC 60076

Yes. Every transformer undergoes routine electrical and mechanical testing before shipment, including insulation, ratio, winding resistance, no-load loss, load loss, and induced voltage tests. A complete factory test report is provided.
